AEM’s new X-Series wideband tuners allows folks who are using piggyback tuning modules or open source software to view and import AFR data through the factory CAN-bus stream that is output by the factory ECU, and help to deliver the most accurate, safe and powerful tune.

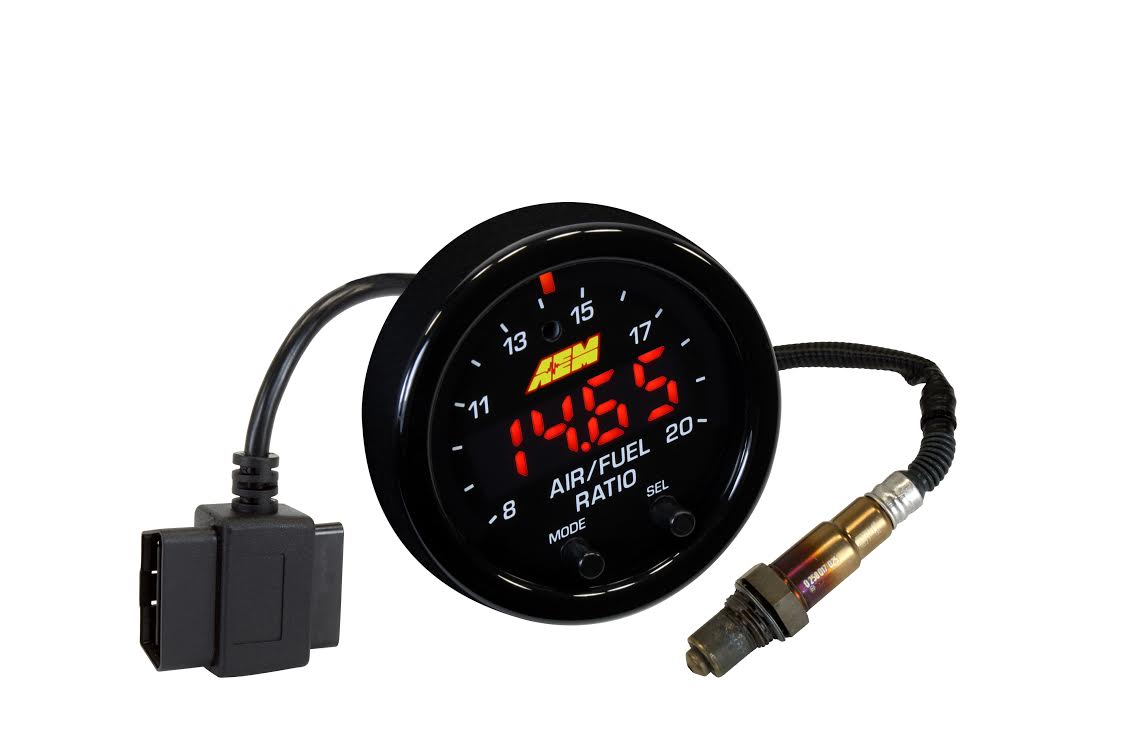

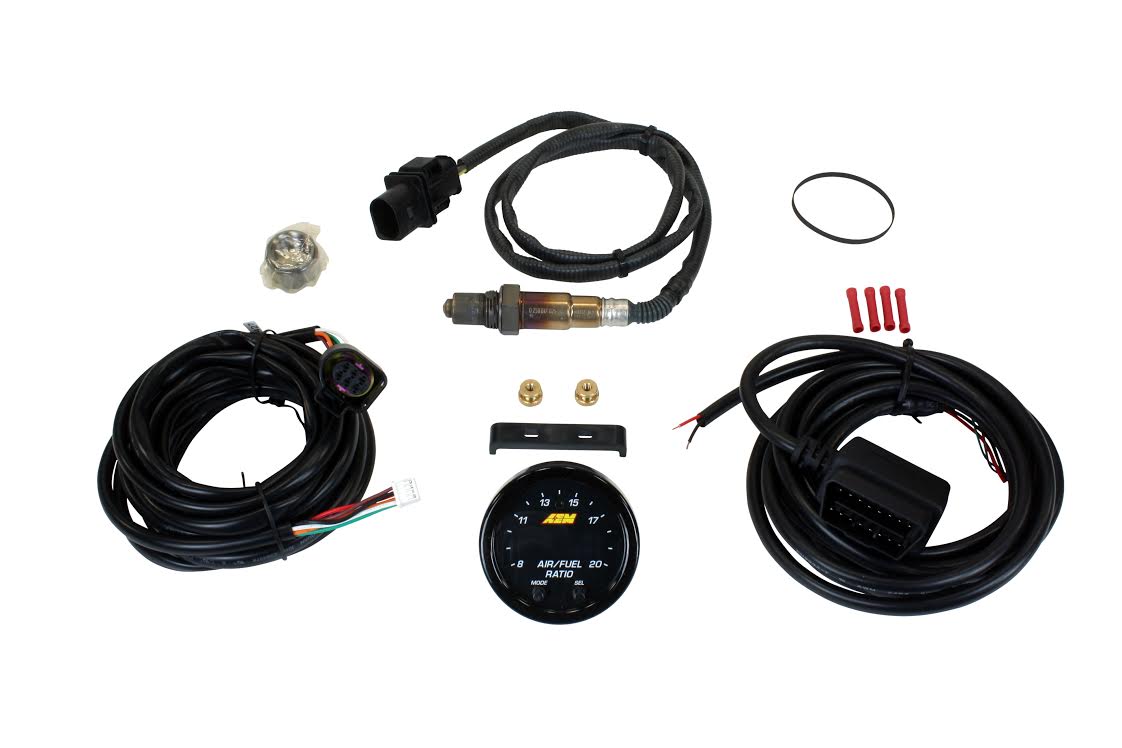

The X-Series Wideband AFR OBDII Gauge includes an OBDII connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.
3 THINGS WE DIG ABOUT AEM’S WIDE BAND CONTROLLER
1.) OBDII CAN-BUS OUTPUT
The OBDII output simulates an auxiliary ECU signal when plugged into a vehicle’s OBD port, which requires a unique address from the other ECUs already on a vehicle’s network. AEM’s default OBDII CAN address will work with most popular vehicles and adjustments should not be necessary. However, AEM has provided OBDII address programmability through the buttons on the gauge face if a different address other than the default address is required, allowing users to program ECU #, Parameter Identification (PID), Message Identifier, and Bit Rate.
2.)AEM MAKES FASTEST WIDEBAND ON THE MARKET
X-Series Widebands are the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers. The controller’s high speed digital implementation ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.
3.) FACTORY CALIBRATION RESISTOR OR FREE-AIR CAL, IT’S YOUR CHOICE!
The X-Series Wideband Gauge and X-Series Inline Controller support the popular Bosch 4.9LSU sensor and can utilize both the factory calibration resistor and free-air calibration methods. This allows users to take advantage of the precise factory resistor calibration when a sensor is new but then allows for free-air calibrations if the user desires when the sensor ages. It’s the perfect marriage of simplicity and accuracy!
X-SERIES WIDEBAND UEGO CONTROLLER WITH OBDII CONDUCTIVITY ALSO FEATURES:
The Fastest Responding Wideband AFR Controller
OBDII pass through provides AFR readings through the factory ECU CAN-bus – Ideal for users with piggyback programmers or open source tuning software!
Includes Bosch 4.9LSU wideband UEGO sensor
Use the factory 02 calibration or free-air calibrate using buttons on faceplate
Compatible with vehicle/system voltages up to 16V
Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
Can display AFR values in hundredths of %
52mm gauge diameter and slim 0.825-inch gauge depth
Gauge cup depth only .200-inch deep!
Auto dimming feature
User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
Black bezel and black dual faced AFR/Lambda faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)
We like it so much we’ve added an X-Series to our C700 project car build. Stay tuned–haha–for the full story here on Corvette Online.
