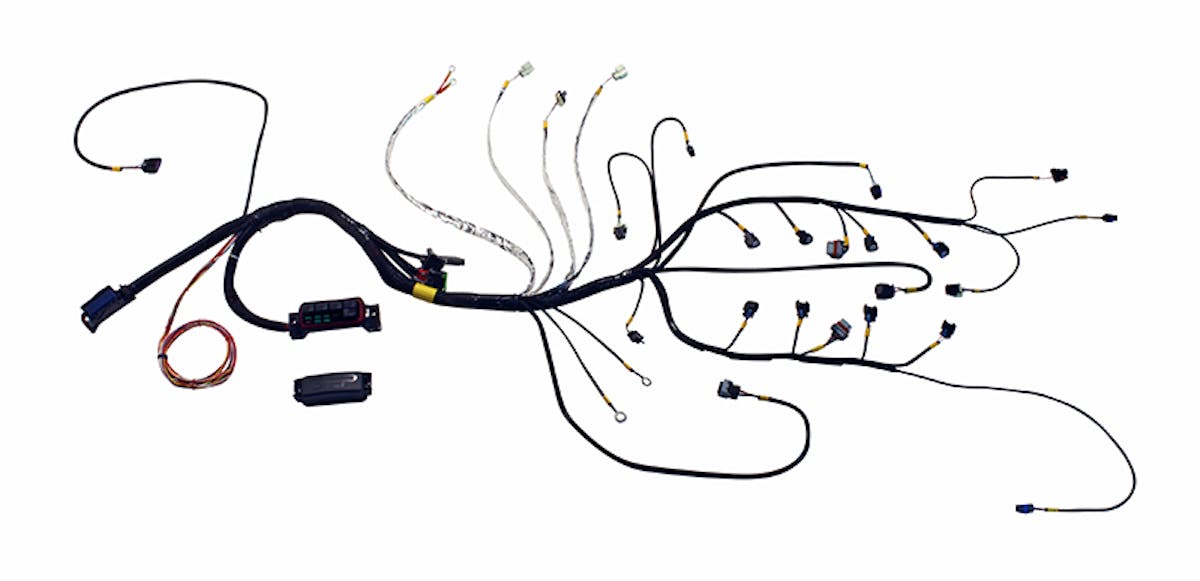

AEM’s Infinity ECUs have become extremely popular throughout all forms of automotive performance. From the peak motorsports teams to amateur racers and street performance enthusiasts, the Infinity ECU allows a wide range of applications to optimize their car’s performance. For GM LS engines with 58X reluctor wheels, it just got better. AEM recently released a plug and play wiring harness for the GM LS race engines with 58X timing.
Plug and play means simplicity and ease, and when it comes to wiring, everyone loves simplicity. Known for high-quality products, AEM Electronics has developed this easily integrated harness to plug into the factory sub harness allowing the system to work with the factory sensors.
The ability to work with the factory system allows the EFI ECU to work with traction control, drive by wire, engine protection and other factory systems flawlessly. The harness is color-coded which helps if troubleshooting or system identification is ever needed.
Benefits of the wiring harness:
- Plugs into factory coil sub harnesses and uses factory sensors for easy integration
- Integrated, weather-resistant fuse & relay panel (7 fuses and 5 relays) for optimum circuit protection
- Shielded cam/crank inputs
- Automotive-grade, color-coded wiring
- High quality braided mesh loom
- Waterproof & shockproof factory sensor connectors
- DTM-style connectors for auxiliary components
- Integrated connectors that mate to OEM coil sub harnesses

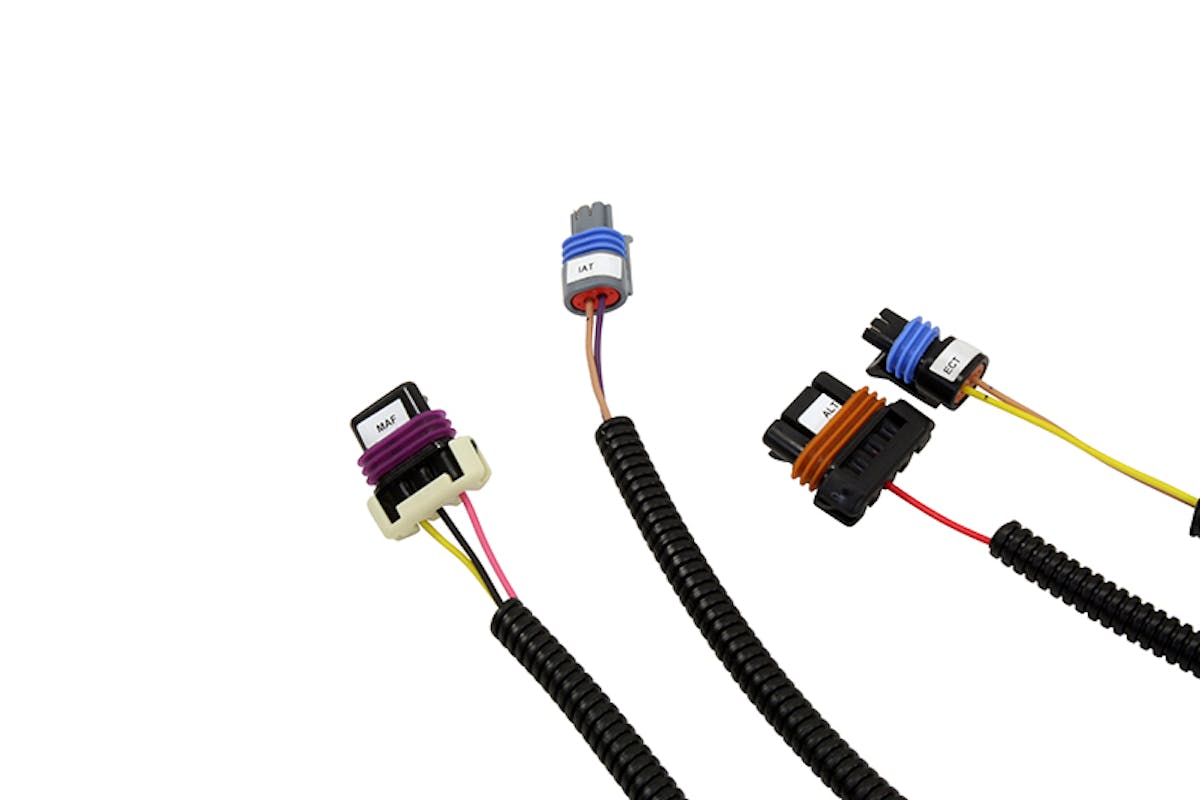

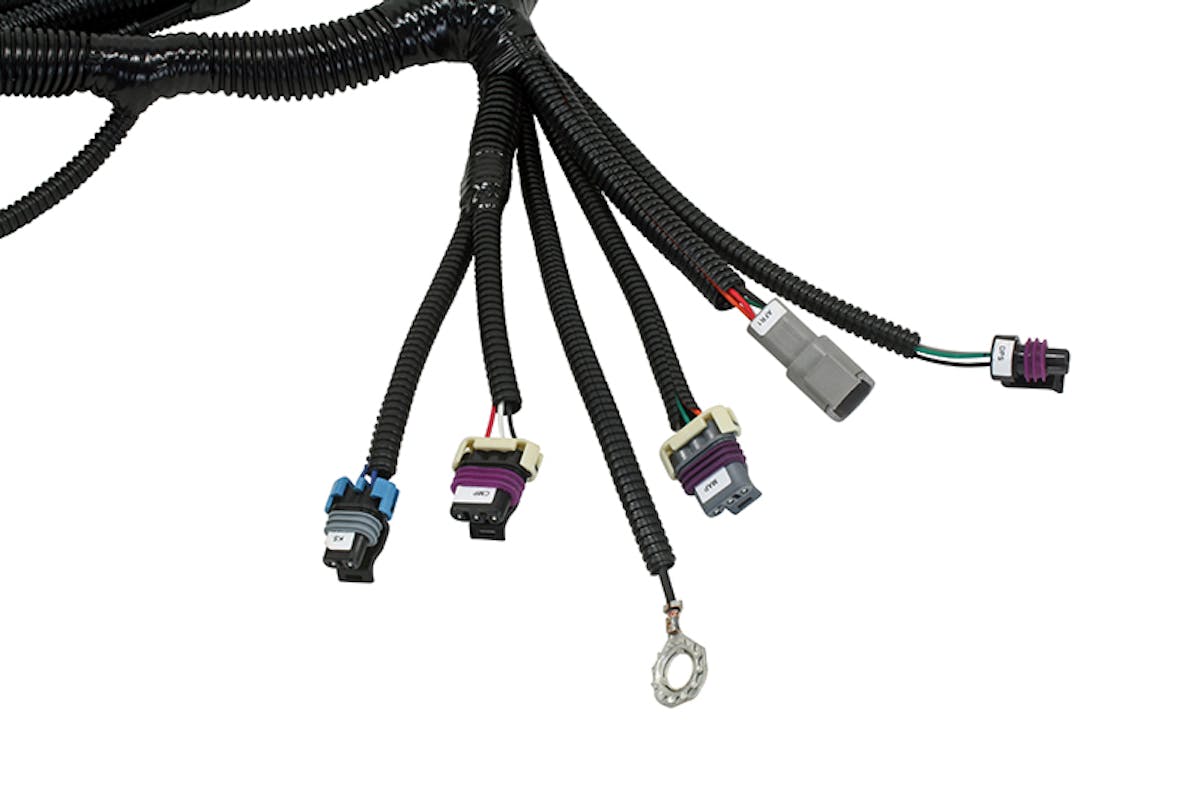

The harness connects with these connectors:
- Drive-by-Wire Throttle Body
- Accelerator Pedal
- Air Temperature Sensor
- Injectors 1 – 8
- Ignition Coils Banks 1 & 2
- Wideband O2
- Knock Sensor x 2
- Crank Position Sensor
- Cam Position Sensor
- Engine Coolant Temp Sensor
- Fuel Pressure Sensor
- Oil Pressure Sensor
- Radiator Fan (12″ flying lead)
- Fuel Pump (12″ flying lead)
- 4-Wire Stepper IAC (Optional)
- 1-Wire Alternator
- Power Distribution Center (5 Fuse-Protected Relays, Distributed Coil & Injector Power)
More information on this and the other fine products from AEM Electronics, visit them at aemeletronics.com.
