C4 C-Beam Brackets From BRP Make Your LS Swap Easier

The fourth-generation Corvette, known to most enthusiasts simply as the C4, arrived in 1984 with a chassis that broke from the formula GM had used for decades. One of the most significant changes lived underneath the car: an aluminum support beam bolted to the rear of the transmission that tied directly into the differential. This beam, commonly called the C-beam, did double duty. It supported the back half of the engine and transmission assembly while also stabilizing the differential in the C4’s independent rear suspension. The design let GM engineers eliminate the traditional transmission crossmember and all the hardware that comes with it, a clever way to save weight without sacrificing structure.

That same innovation has turned into a headache for anyone trying to modernize a C4’s drivetrain decades later. The tailshaft housings on the factory transmissions had specific attachment points cast right into them so the C-beam could bolt up. Swap in a later model transmission that was never designed with those mounting points, and the C-beam has nowhere to go. For years, that gap has made engine and transmission swaps in the C4 more complicated than they should be.

Solving A Problem Built Into The Chassis

Working through problems like this is what BRP Hot Rods does. The company has built a reputation as an industry leader in designing and fabricating engine and transmission swap components, and the C4’s C-beam mounting issue was a natural target. While developing a full LS engine and transmission swap kit for the C4 chassis, BRP engineered a dedicated bracket system that lets the C-beam mount properly to certain GM 4L60E and T-56 transmissions.

The brackets were born out of that larger swap package, but they do not require buying the whole kit to use. BRP also sells them as a standalone product for enthusiasts who only need to swap the transmission and want to keep the C-beam in place without reengineering the mounting system themselves.

Built From US-Sourced Steel With Grade 8 Hardware

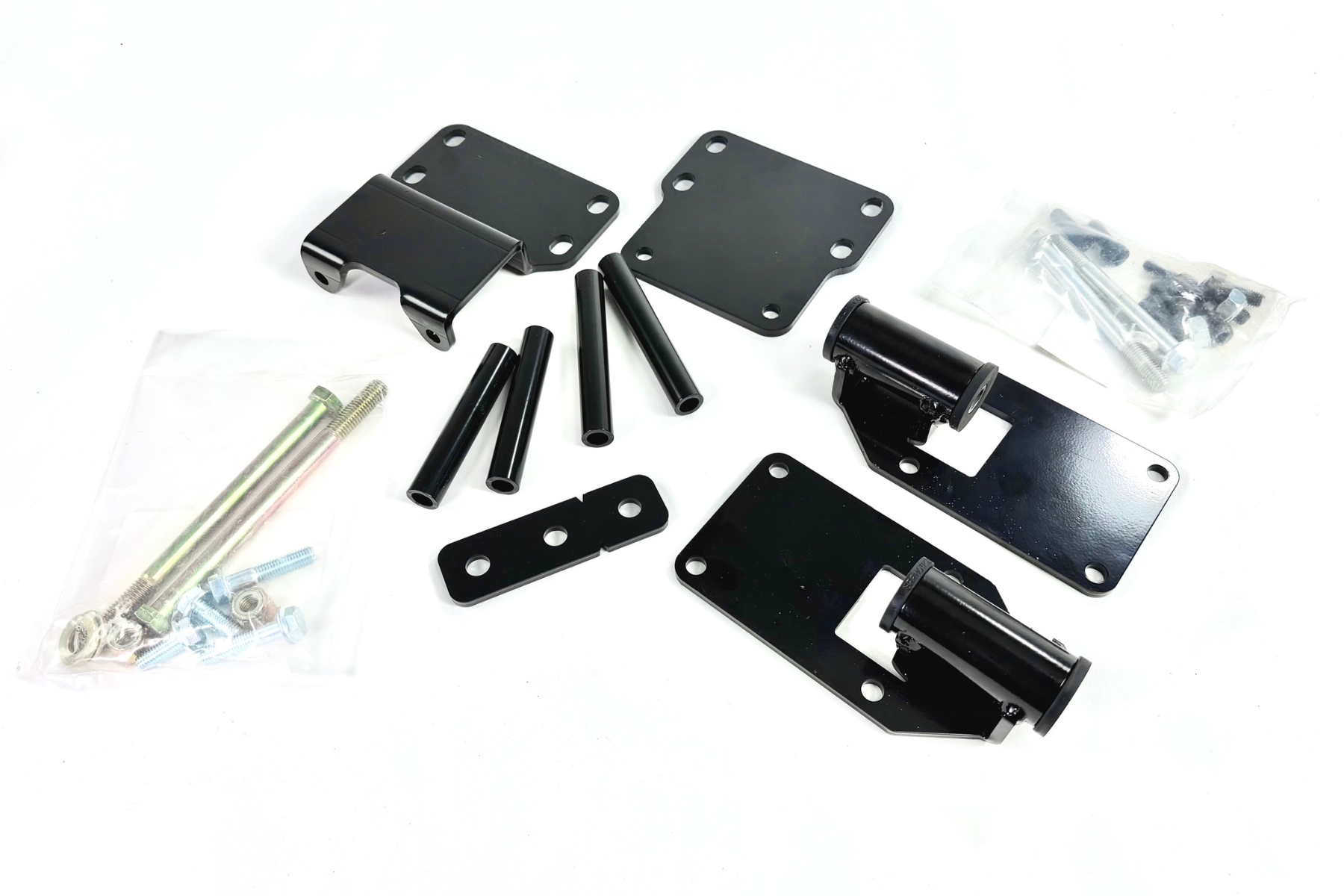

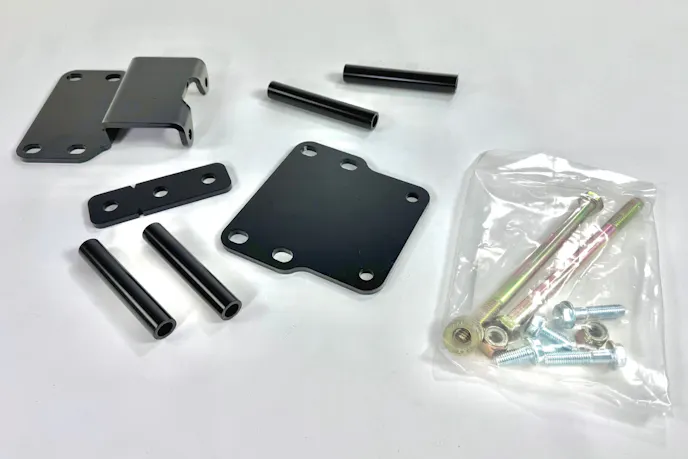

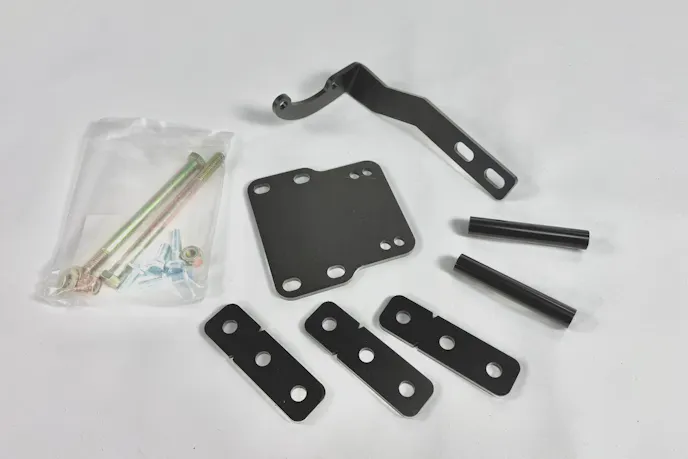

Each bracket is laser-cut from US-sourced three-sixteenths-inch steel and finished in black powder coat, with Grade 8 hardware included for strength and long-term durability. The fitment covers two distinct applications. The 4L60E bracket is built for transmissions that originally came installed behind LS-based engines, giving LS swap builders a direct path to using the factory C-beam setup. The T-56 bracket fits the original F-body T-56 units out of Camaros and Firebirds, as well as the TREMEC Magnum F, a popular aftermarket six-speed many builders choose for their swaps.

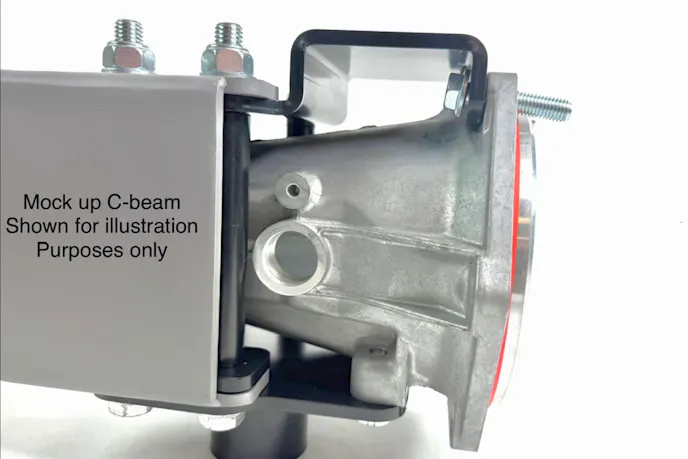

For C4 owners who have put off a transmission upgrade because of the C-beam attachment problem, BRP’s bracket system removes that obstacle entirely. The parts let a 4L60E or T-56 bolt into the chassis the way the factory unit did, keeping the rear suspension support and crossmember-free design the C4 was built around.

BRP Hot Rods built its name by identifying problems that other swap part manufacturers overlooked and engineering a real fix instead of a workaround. The C4 Corvette C-beam bracket system is another example of that approach, giving builders a straightforward, well-engineered way to bring a late-model transmission into a car that was never designed to accept one.
