“I was traveling on business and I called my wife up and said, “Hey, uh, I think I might have just won an auction on a Corvette,” recalled Matt Montesa, an IT engineer from Oceanside, California. “I caught some heat for that one, but it all turned out OK in the end…”
Truth is, Matt had been on the hunt for a new machine for a while. “It really goes back to my [fourth generation] Pontiac GTO,” he said. “I’d done some track work with the car – I had the setup dialed in pretty well in terms of suspension and power – but I realized that I’d pushed that car as much as I could, and if I wanted to step beyond that, I was going to need to move to a different platform.”
While the Holden-derived GTO is a great muscle car in its own right, its sedan-based design has inherent performance disadvantages versus a purpose-built sports car platform like the Corvette, which has much more focus on rigidity and weight distribution, as well as a lower center of gravity.
“Knowing the background of Corvette in endurance racing and how much effort had been put into motorsport development, I figured that would be a good move to make,” he explained. Especially since the GTO – as far as performance parts went – had limited aftermarket support, whereas with the Corvette there’s just a million different ways you can go.”

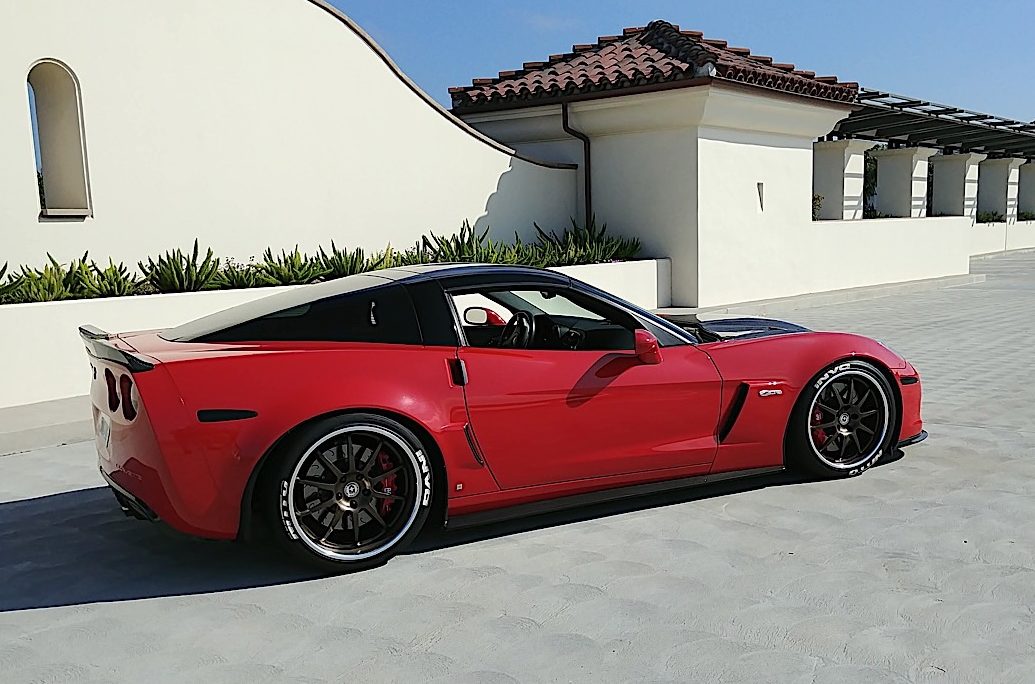

Matt became the third owner of this clean, 2008 Victory Red Z06 example back in 2012 and quickly set to work dialing the car in for dual duty as both a track machine and a daily driver. “I wanted a car I could track, but knowing what I knew about building track cars, I realized that going down that road with a project was endless,” he told us.
“So, realizing that the majority of the car’s use would be on the road, the real goal was a car that could do both well. This car was already a bit modified when I bought it and the previous owner had started in a similar direction, so I just kept going.”
Inside and Out
Though far from garish, it’s clear from a glance that this Corvette is anything but factory stock. Carbon fiber plays a significant role in both its aesthetic and weight reduction efforts.

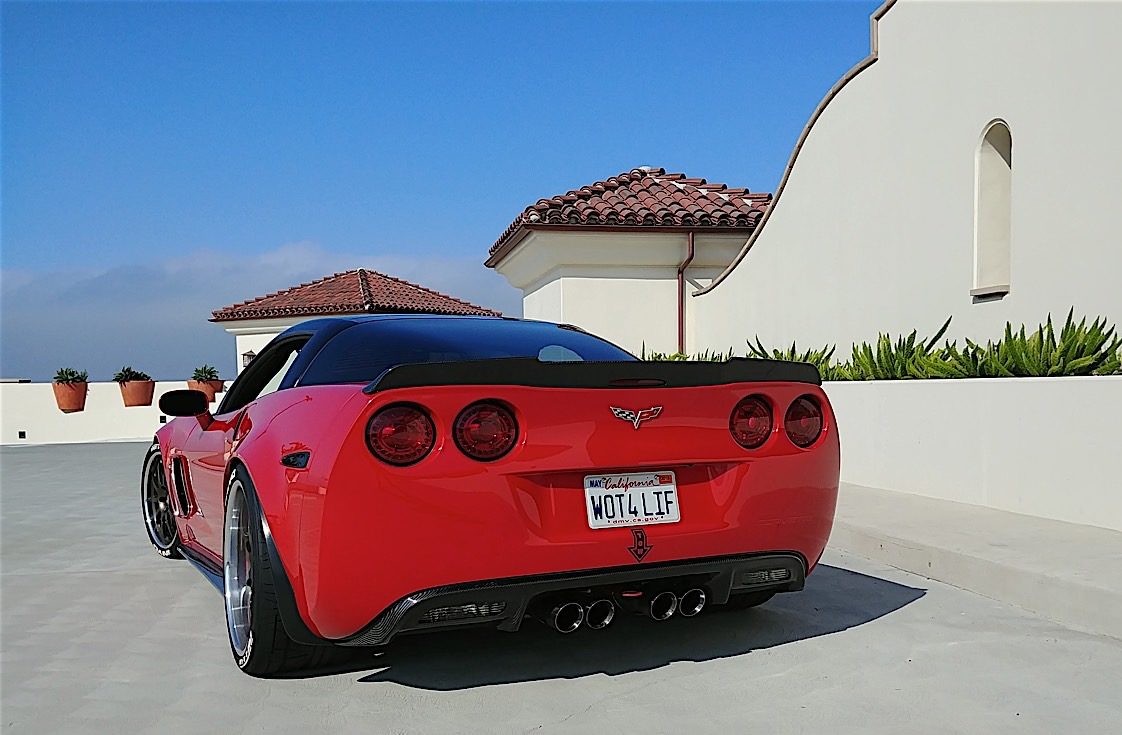

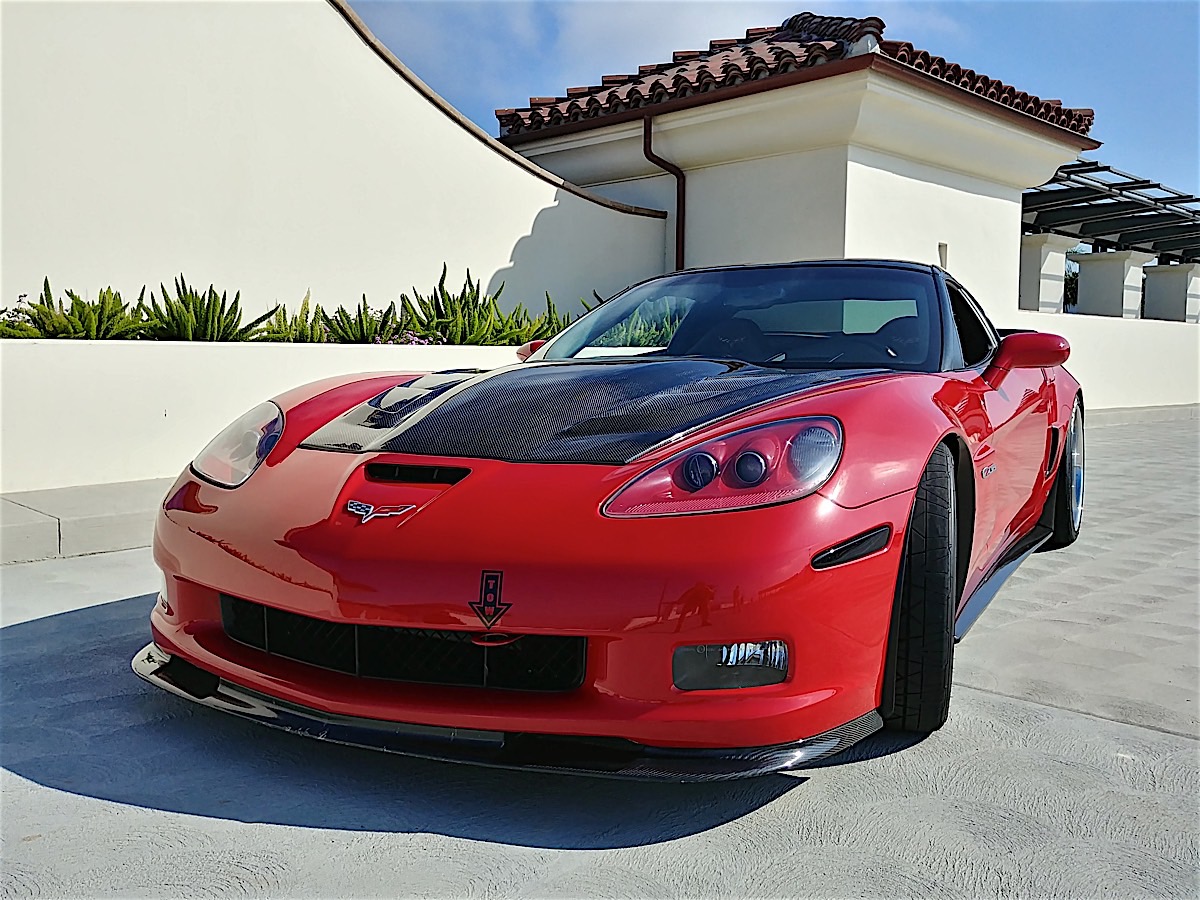

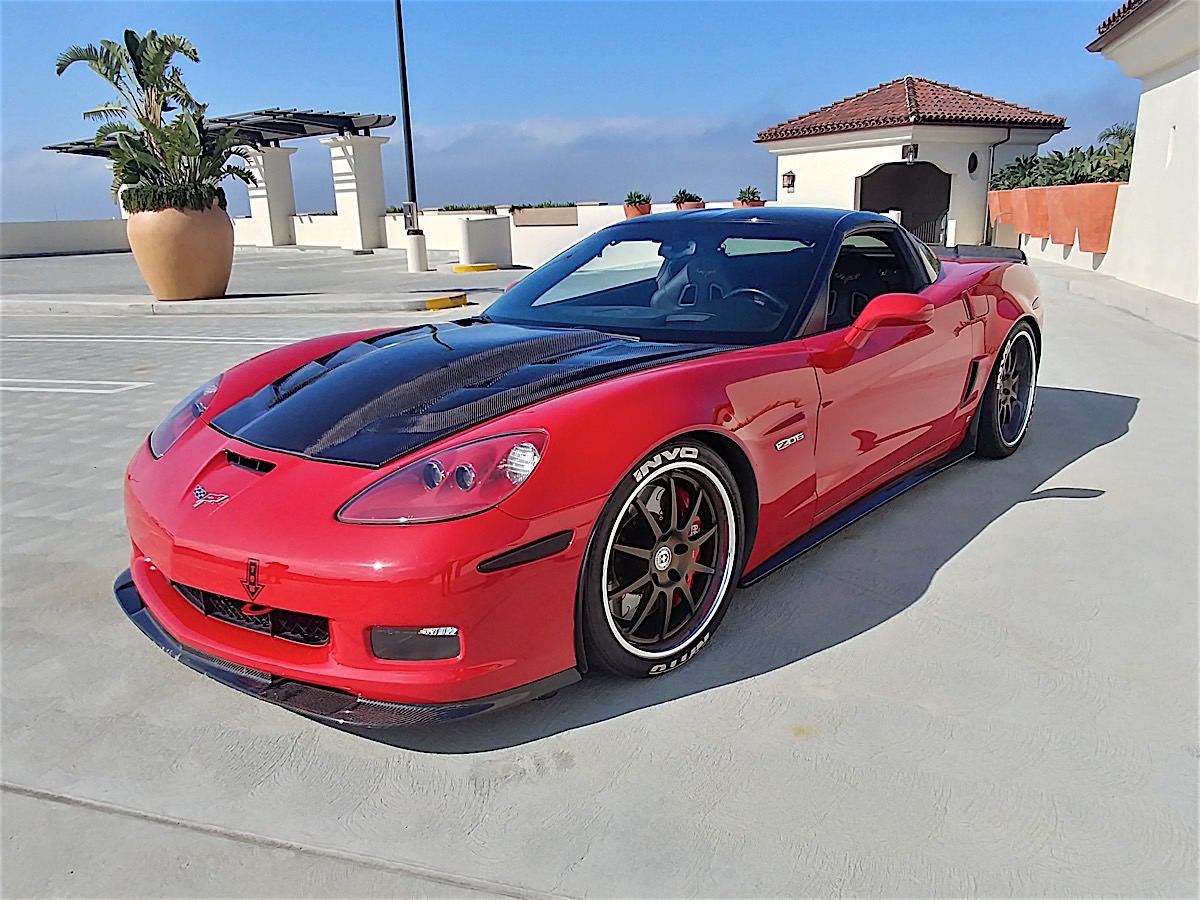

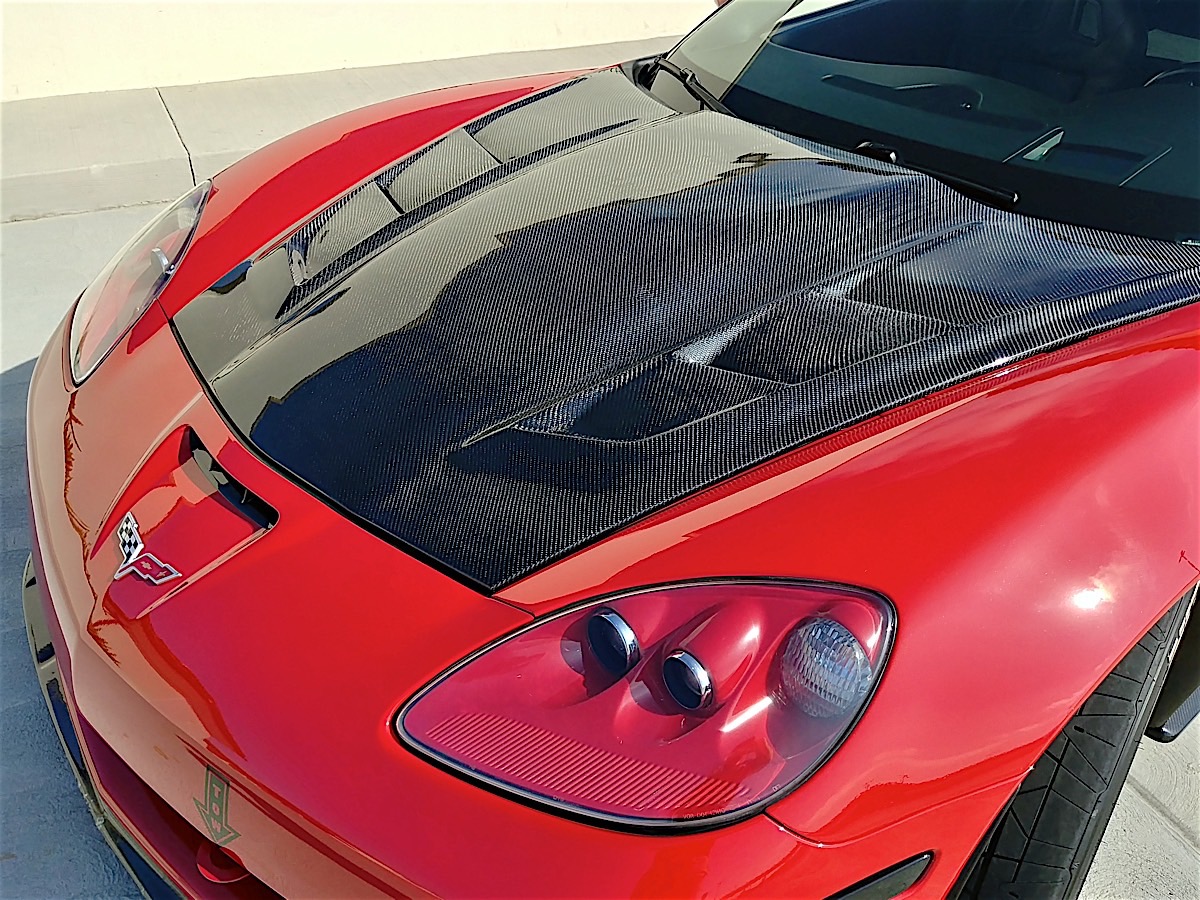

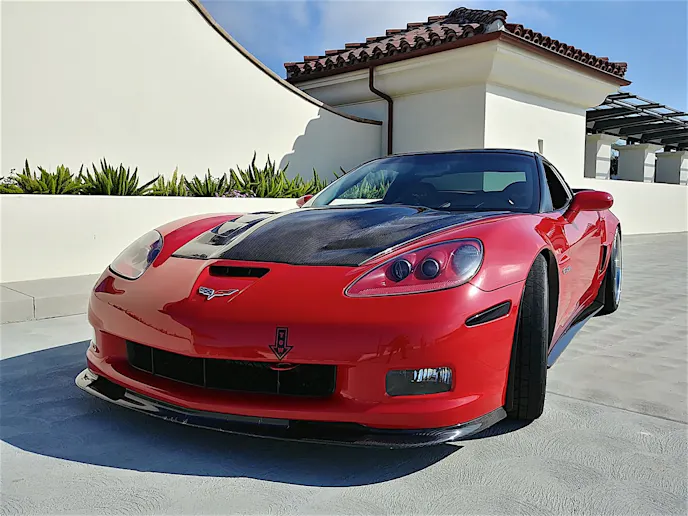

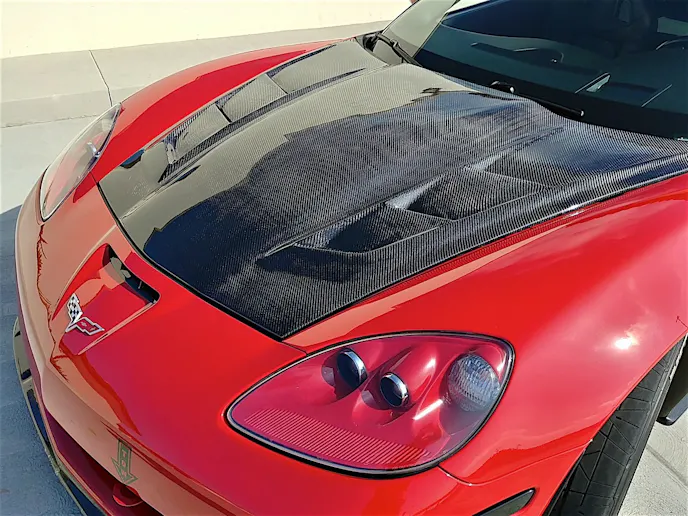

A Carbon Creations H-design hood and CF Kits & Performance front splitter are complimented by APR side skirts, a Katech carbon fiber rear spoiler, a C7 carbon rear diffuser, and Halltech carbon brake ducts.

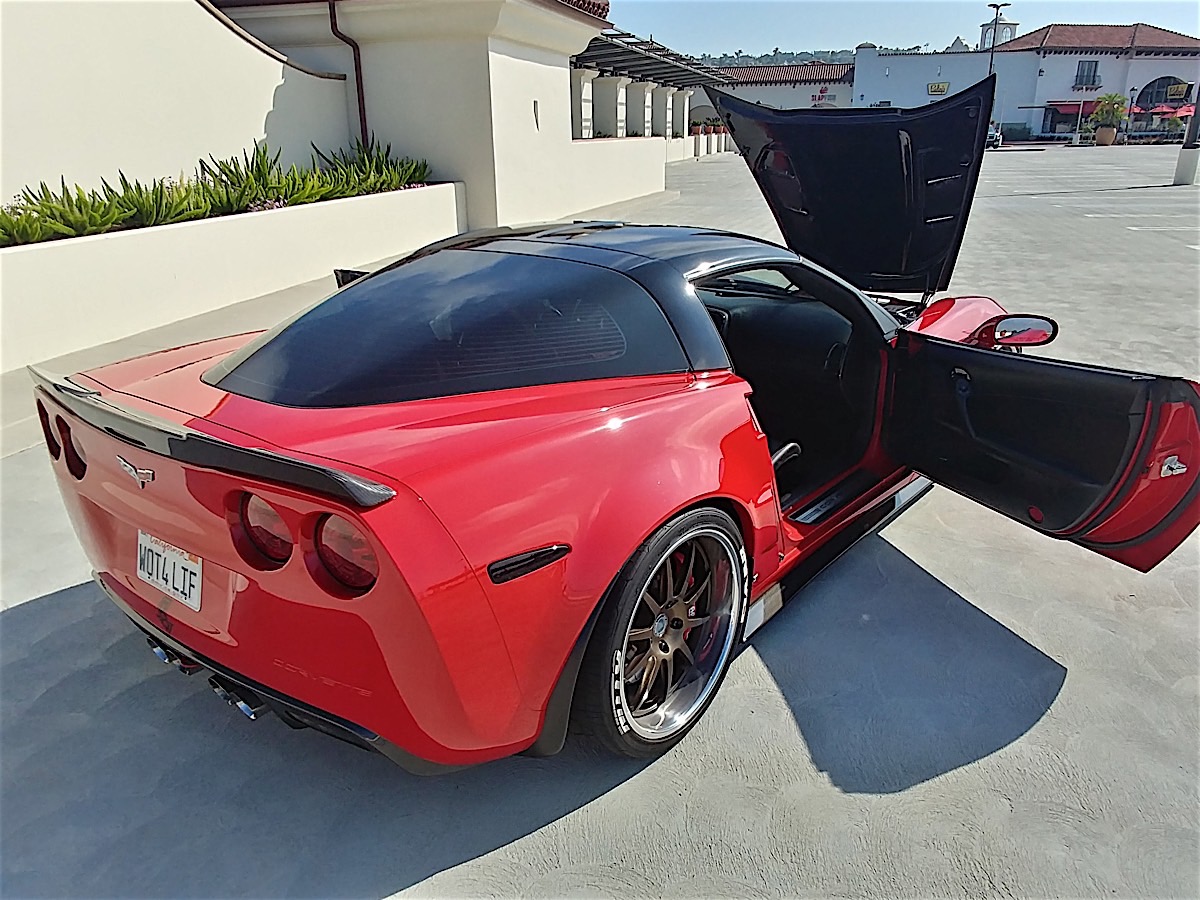

A gloss black roof wrap helps round out the two-tone look, while tinted Eagle Eye LED tail lights, HID headlights, and Pfadt Performance tow hooks at the front and rear bring a purposefulness to the look while adding function as well.

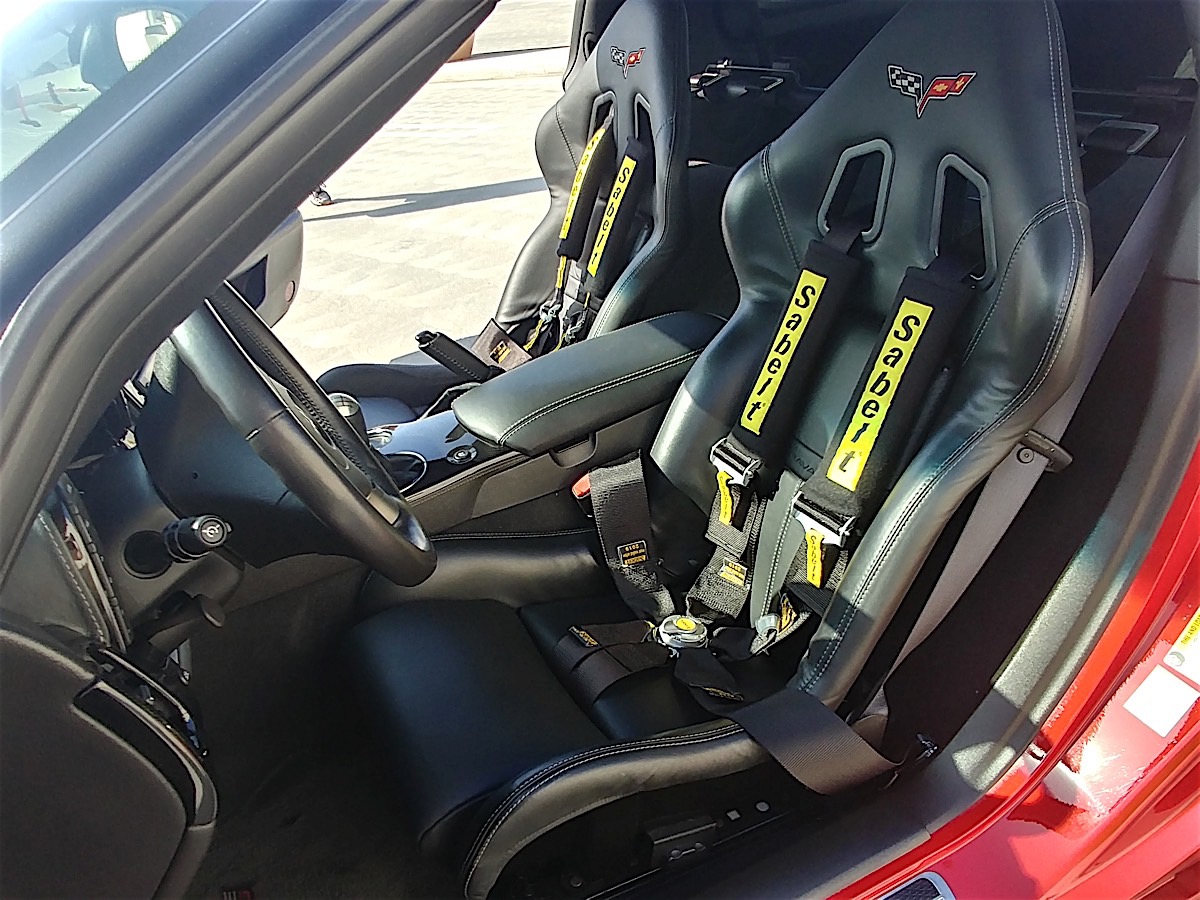

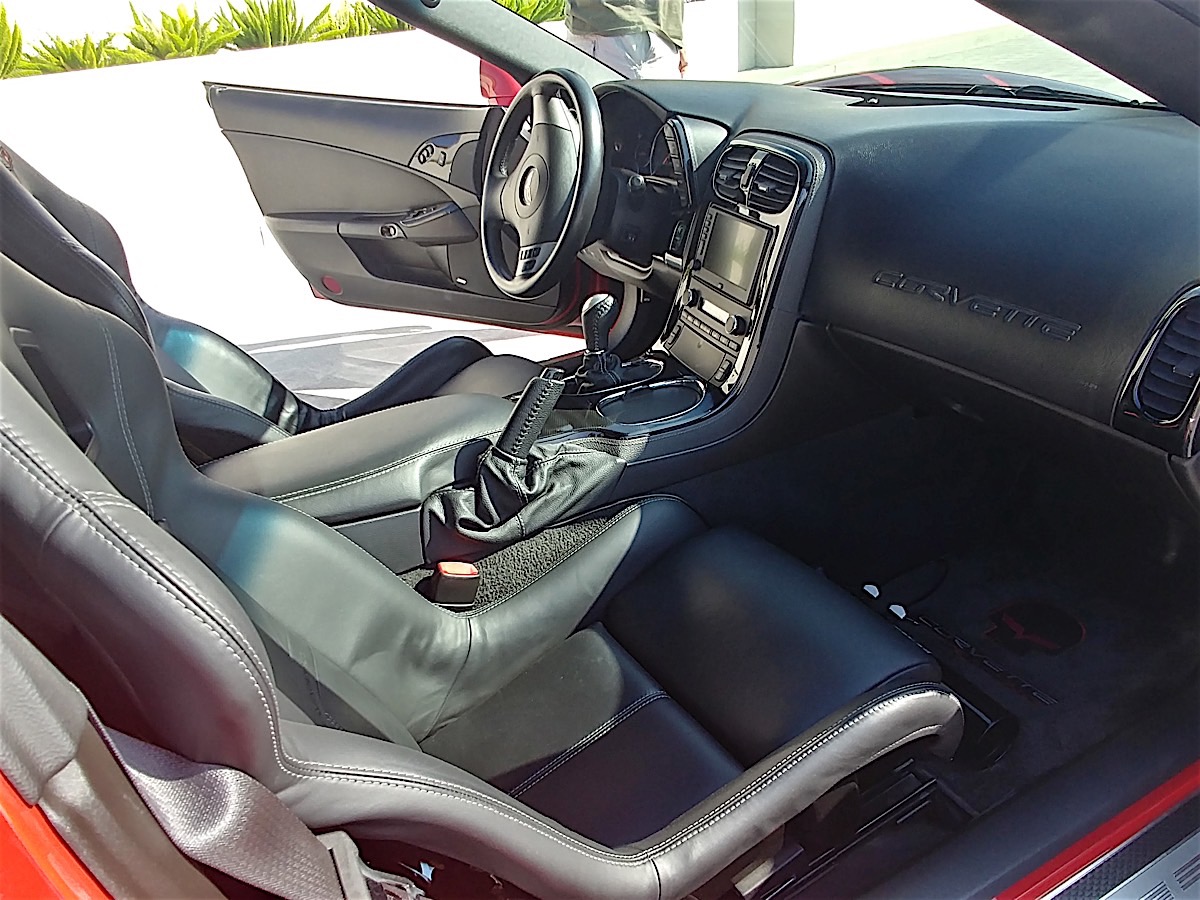

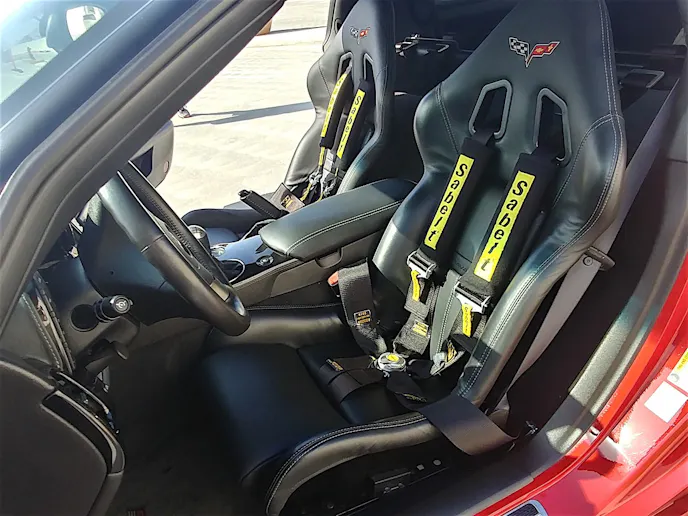

Inside that theme continues, with Caravaggio race seats, Sabelt 6 point racing harnesses, a VetteWorks Sharkbar harness bar, a VetteWorks fire ext. bracket and a VetteNuts heat shield add a significant measure safety and function while American Hydro carbon fiber interior trim, a DS Vettes padded center console, and an Elite Engineering pedal set help to class up the C6’s cabin. An MGW short throw shifter also hides beneath the factory shift knob and boot.
Under The Hood
Despite the fact that the LS7 lurking beneath the hood of Matt’s C6 Z06 has been wrenched on by the likes of Pratt and Miller, Katech, Cunningham Motorsports, Total Engine concepts, and Evod Garage it remains naturally aspirated, retaining the linear, consistent power delivery that is often taken away by forced induction.
This route is also particularly ideal for sports cars as it avoids adding any significant weight high up on the front end of the car to bring about a significant increase in power over stock.

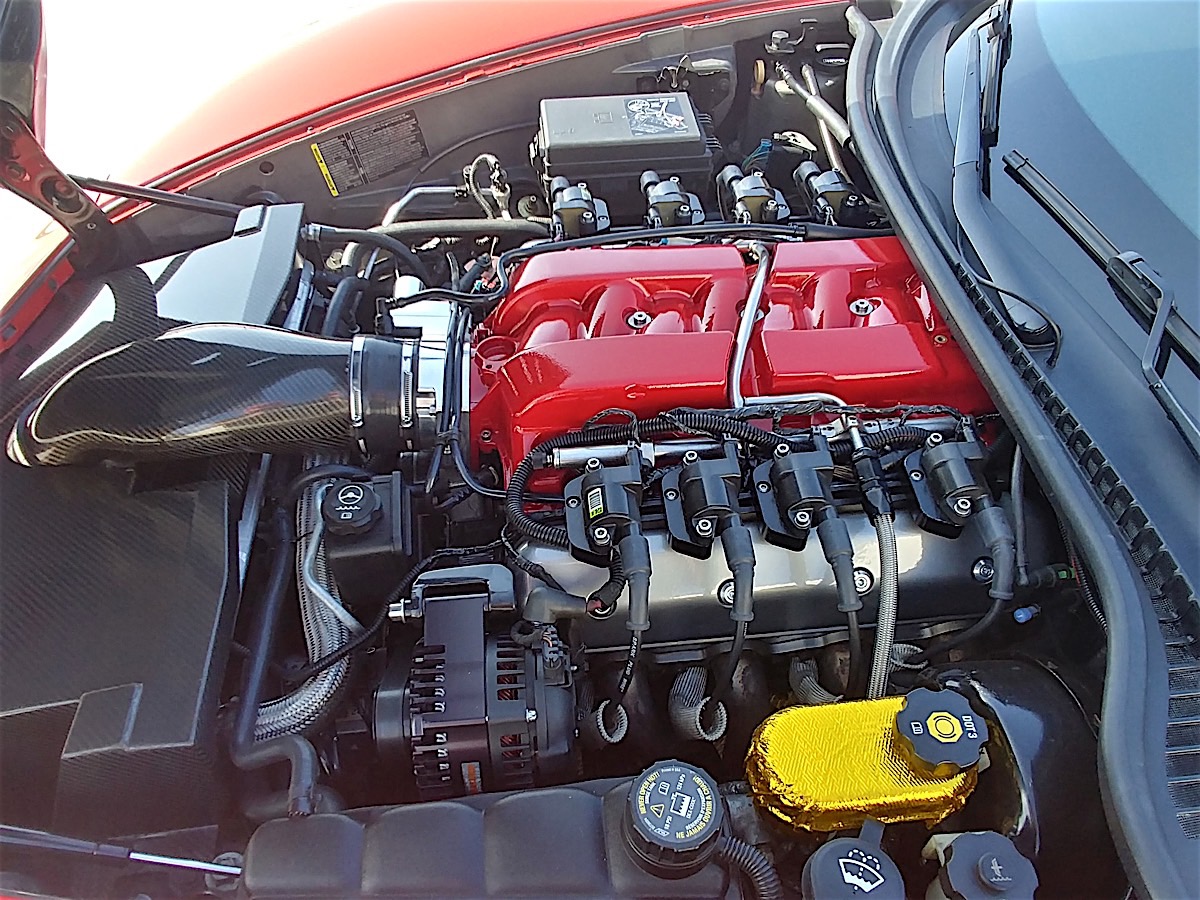

The Corvette’s 7.0-liter mill now dishes out 623 horsepower and 523 lb-ft of torque thanks to a blueprinted bottom end with Mahle forged pistons and Clevite engine bearings prepared by Total Engine Concepts – the same folks who’re responsible for the Mosler MT900’s LS-based power plant – while an ATI damper, WCCH cylinder heads, a CMS “Stage IV” spec camshaft, a Nick Williams ported 102mm throttle body and a Mamo Motorsports shaved, ported, and color matched intake manifold round out the package.
A Finspeed dual pass radiator and external oil cooler help keep engine temperatures down during intensive track work, while a Fore Innovations fuel system and CMS flex fuel conversion allow Matt to alternate between pump gas and E85 as needed. Air intake is handled by a Halltech Super Bee CF112 cold air system while exhaust gases are routed through a pair of Kooks 1 7/8” long-tube headers, cat-less mid-pipes, and modified factory mufflers.
Suspension and Chassis
Matt also made sure that the car’s handling and braking could still hang with the added motivation applied to the LS7.

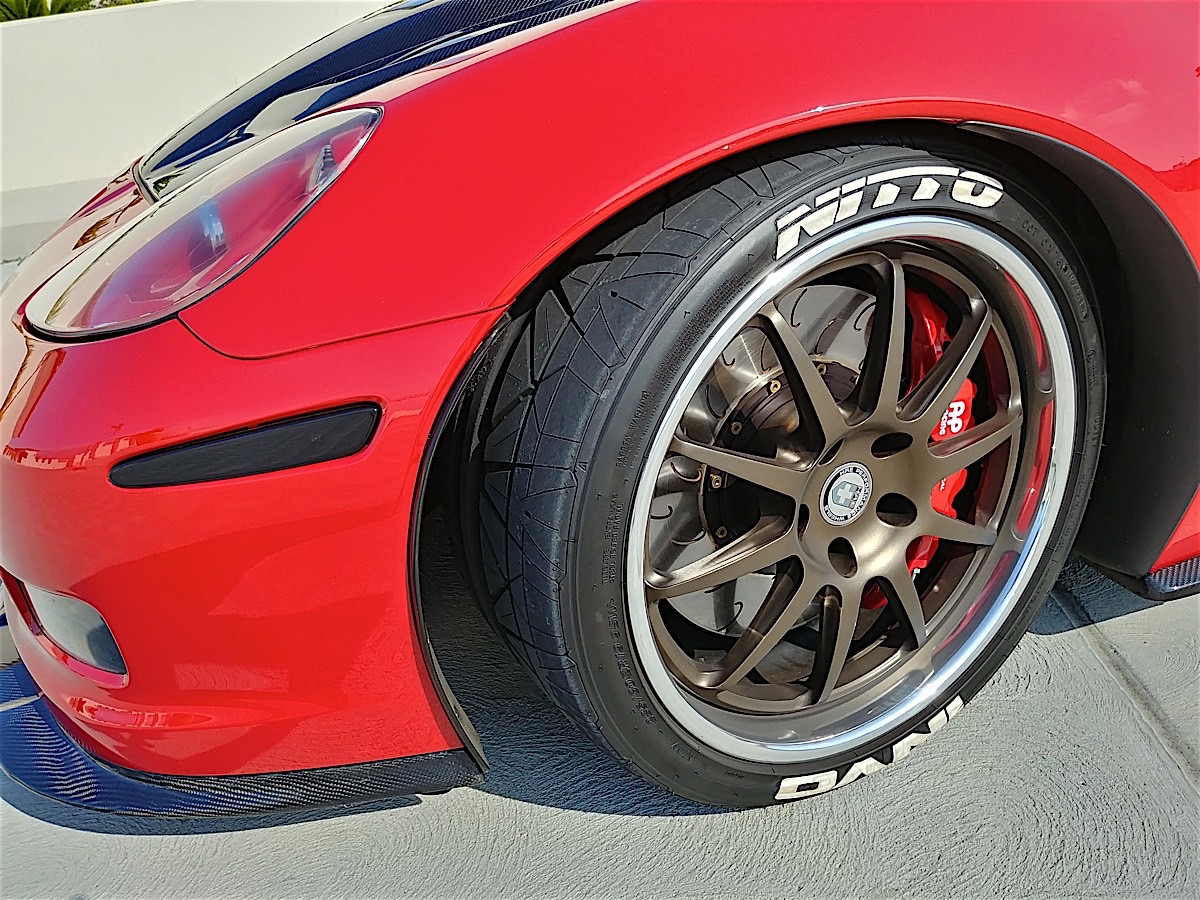

Stopping power is administered by AP Racing Radical calipers with two piece J-hook rotors (370mm up front and 360mm rear) as well as a brake duct kit for added heat management, while a set of Pfadt Gen I coilovers, Pfadt competition sway bars, and a Pfadt camber kit have been equipped to curtail brake dive and body roll while bolstering the Corvette’s road-holding capability.

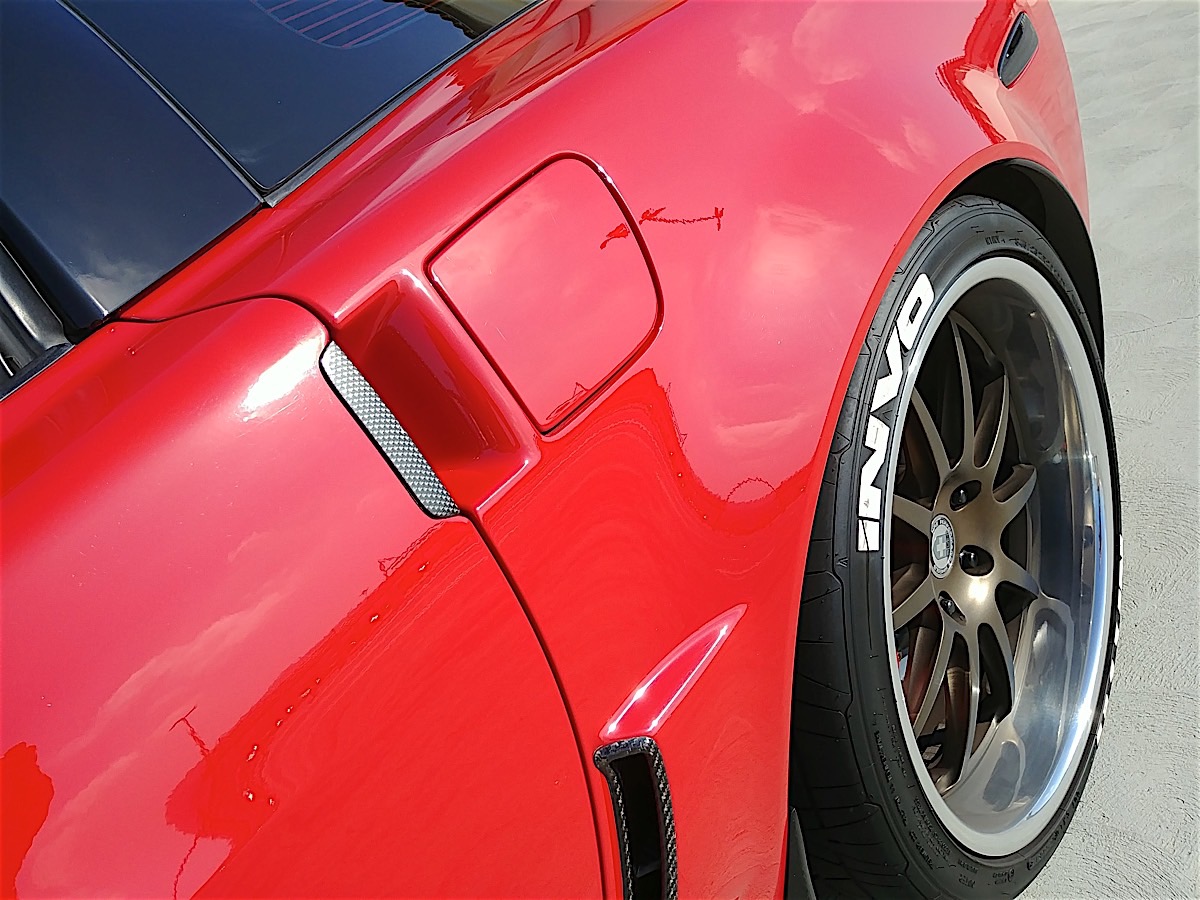

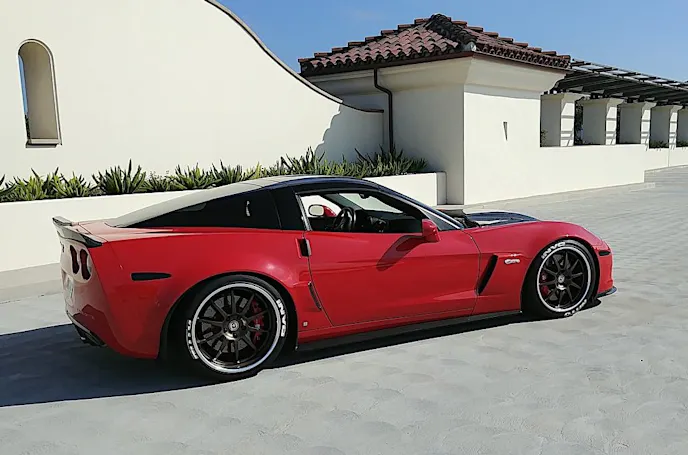

The car sits on a set of HRE 893R wheels built from 6061-T6 forged aluminum that are wrapped in Nitto Invo high performance rubber that measures 285/30/19 up front and 345/25/20 in the rear.
“The way that the car is built, it will do road course work very well, but I also spend a lot of time roll racing with it,” Matt explained. “It’s seen its share of run sessions at Willow Springs and Auto Club Speedway’s Roval sports car course, but road course competition and time trials is a financial rabbit hole I wasn’t really looking to go down with this car.”
That said, the car has clocked a 196.9mph top speed in a standing 1.5-mile run at the Mojave Mile, while personal bests of 181.3 mph in a standing mile and 161.7 mph in a standing half-mile show that this C6 is capable of seriously hauling the mail. “I wanted this car to serve as both a track car and a canyon carver – something that still worked on the road,” he told us.
“When you start getting into dedicated track cars, it’s an entirely different ball game where you need trucks, trailers, race slicks and all of the wear and tear involved. You better have some endlessly deep pockets if you’re not a pro because those expenses start to add up really quick. I bought this car with money I’d saved from a deployment to Iraq – a war trophy, if you will.”
Until Chevrolet shows up on his doorstep looking for a new factory driver, Matt is happy to just hit the track for the occasional shakedown and enjoy the incredible handling, the noise the LS7 makes at wide open throttle, and the car’s solid reliability – although he admits the odd electrical gremlin does rear its head now and then, which is to be expected with a car this far from factory stock.
Though the car has been in its current state of tune for about a year and half, Matt tells us that “there’s really no end state” to the project. Considering the near-endless amount of ways to tweak modern Corvettes to one’s liking and Matt’s penchant for serious all-around performance, we have little doubt that this Z06 has yet to see its final form.
