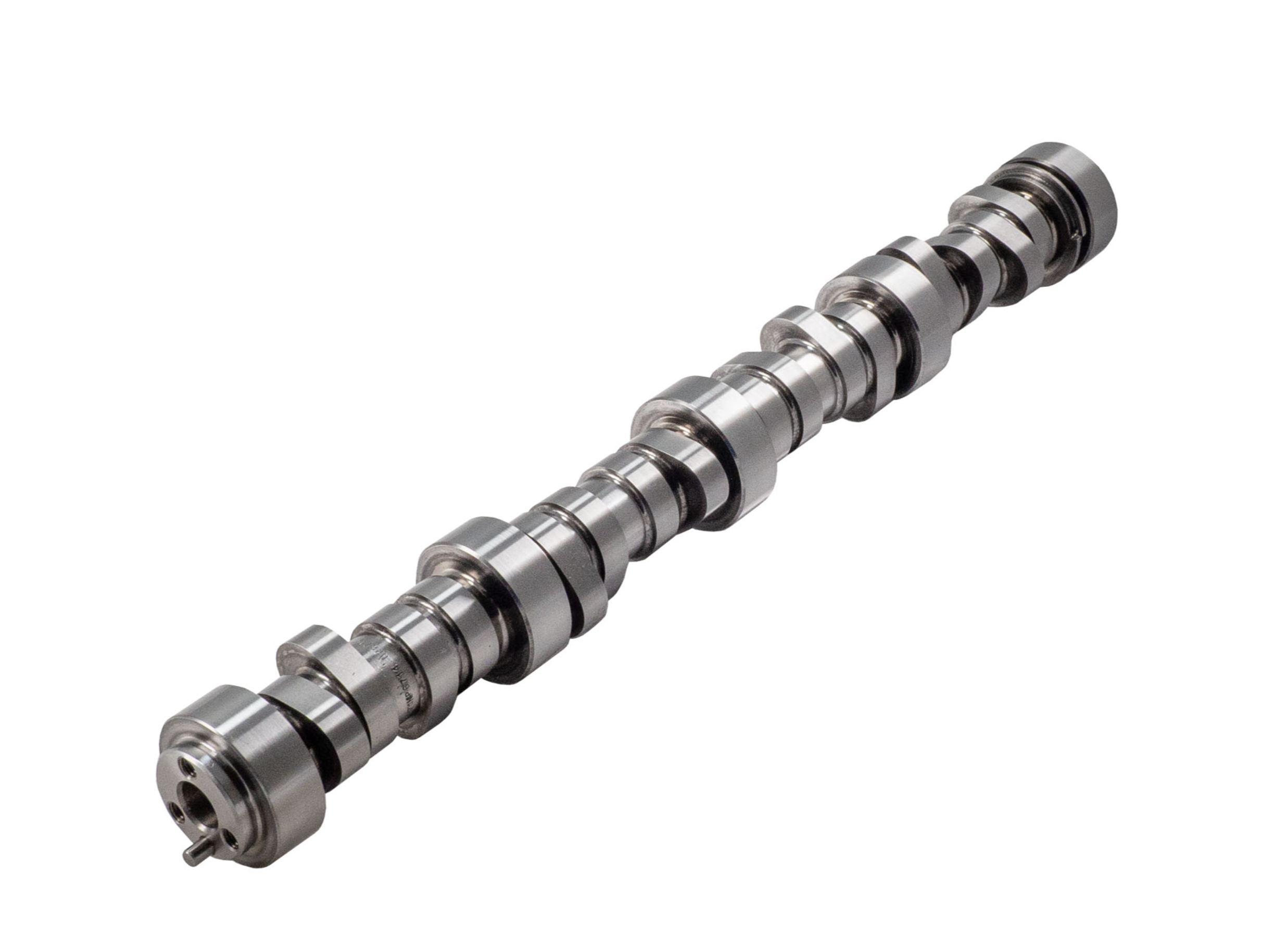

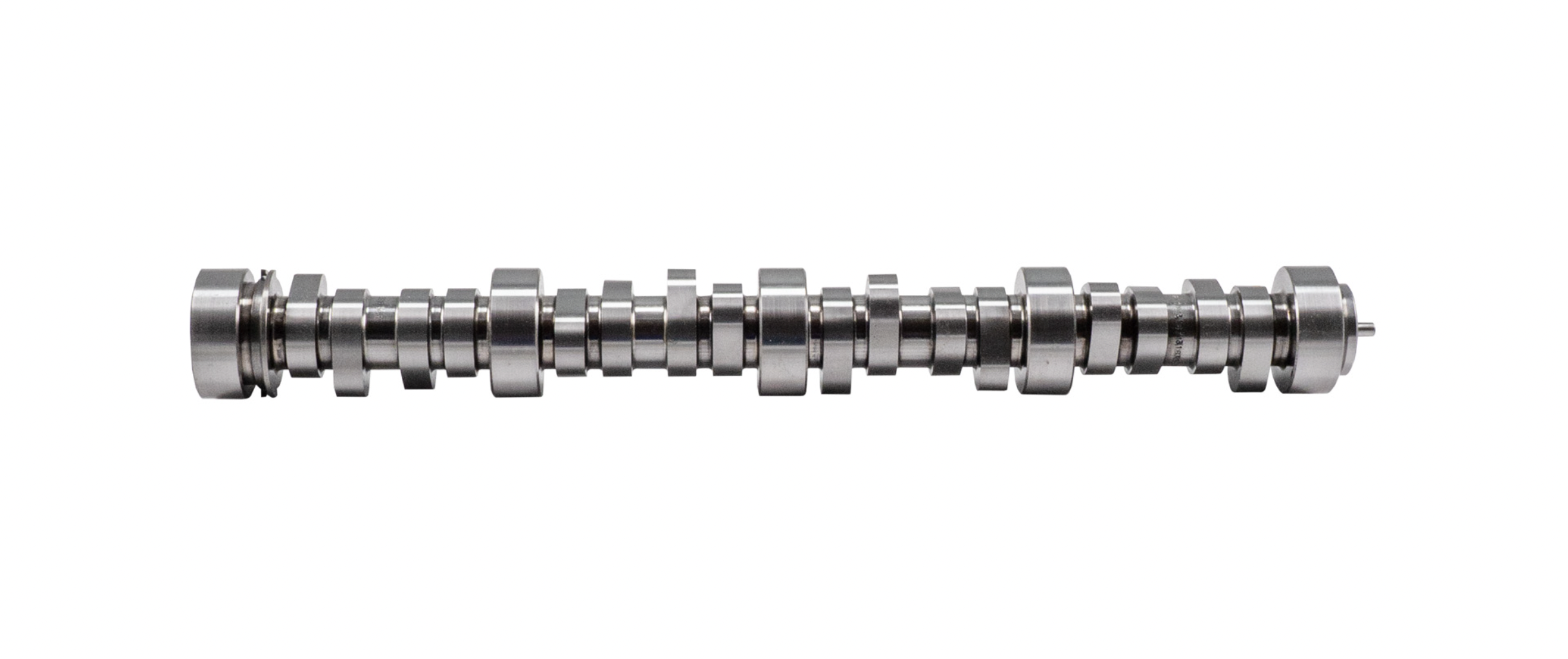

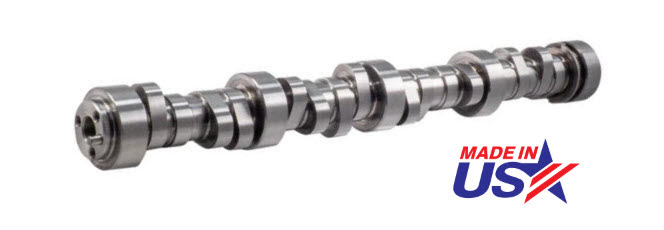

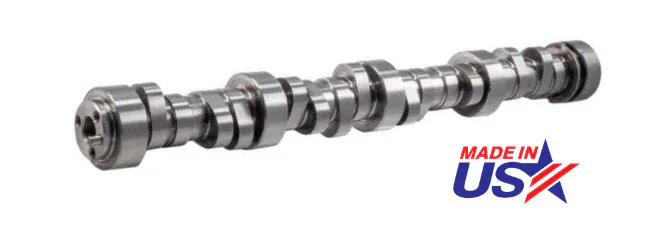

Gen 3 and Gen 4 LS owners, rejoice! What’s better than a new product announcement?… How about 14? Melling Performance, a leading manufacturer of high-performance engine components, has recently released a lineup of 14 new camshafts – all designed specifically for the GM LS engine. The new slew of class 2, 3, 4, and 5 cams are aimed to cover various generations and configurations, making them ideal for a large variety of builds.

The 14 new part numbers are designed to work with both Gen 3 and Gen 4 LS engines, in non-AFM (active fuel management), and non-VVT (variable valve timing) applications, utilizing a 3-bolt cam.
| Part # | Class | Dur. @ .050 | Valve Lift | Lobe Separation | RPM Range | |
| 22206 | 2 | 212/218 | .553/.553 | 111 | Idle-5000 | Truck Cam |
| 22207 | 2 | 212/218 | .604/.604 | 112 | Idle-5000 | Truck Cam |
| 22323 | 3 | 218/224 | .553/.553 | 110 | 1800-5400 | Truck Cam |
| 22324 | 3 | 224/230 | .553/.553 | 109 | 1800-5400 | Truck Cam |
| 22325 | 3 | 218/224 | .604/.604 | 112 | 1800-5400 | Truck Cam |
| 22326 | 3 | 224/230 | .604/.604 | 112 | 1800-5400 | Truck Cam |
| 22327 | 3 | 224/230 | .625/.625 | 112 | 1800-5400 | LS1/LS2 |
| 22328 | 3 | 226/238 | .625/.625 | 112 | 1800-5400 | LS3 |
| 22422 | 4 | 228/234 | .625/.625 | 112 | 2000-6000 | LS1/LS2 |
| 22423 | 4 | 232/240 | .625/.625 | 112 | 2000-6000 | LS1/LS2 |
| 22424 | 4 | 236/244 | .625/.625 | 112 | 2000-6000 | LS1/LS2 |
| 22425 | 4 | 230/244 | .625/.625 | 113 | 2000-6000 | LS3 |
| 22501 | 5 | 234/248 | .625/.625 | 113 | 2500-6500 | LS3 |
| 22502 | 5 | 238/252 | .625/.625 | 113 | 2500-6500 | LS3 |
Among the 14 new releases, Melling offers six camshafts specifically for truck engines – an ideal choice for those looking for improved performance and easier towing in their LS-powered pickup.
Four of the new camshafts have been fine-tuned to maximize horsepower and torque in engines featuring Cathedral port cylinder heads, including the ever-popular LS1 and Ls2. The remaining four were designed for Rectangular port engines (most commonly, the LS3). The race-style Class 4 and 5 offerings for the LS1, LS2, and LS3 offer the lineup’s most “usable,” mid-range power and torque.
To learn more about Melling’s complete range of high-performance camshafts and obtain more detailed information, including a list of vehicle fitment, on each part number, visit their online catalog here.
